New DBIO
Create a DBIO.
-

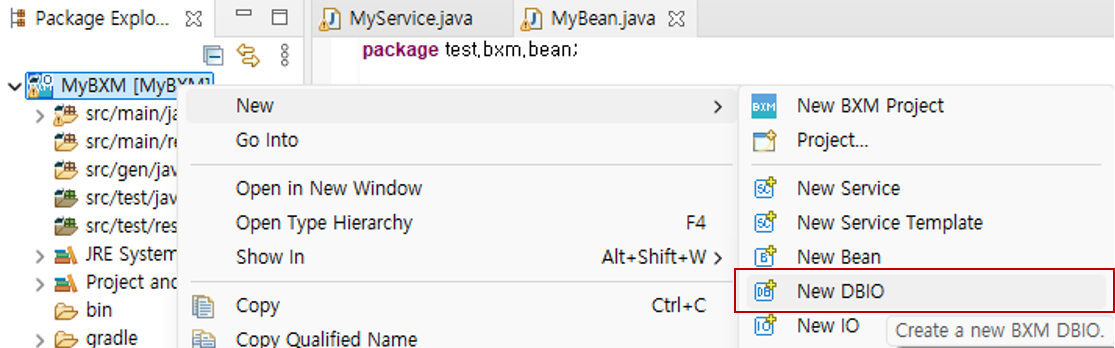

In the Package Explorer, select the project in which to create the DBIO → right-click → select 'New DBIO'.
-

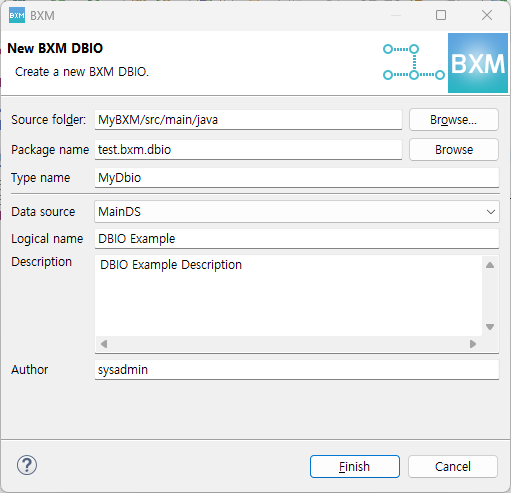

Enter the necessary information in the New DBIO wizard.
-
Source folder: You can select the source folder where the DBIO will be created.
-
Package name: You can select the package where the DBIO will be created.
-
Type name: Enter the name of the DBIO.
-
Data source: Select the data source to be used by the DBIO.
-
Logical name: Enter the logical name of the DBIO.
-
Description: Enter a description of the DBIO.
-
Author: Enter the author. The ID used at login is used as the default value.
-
-

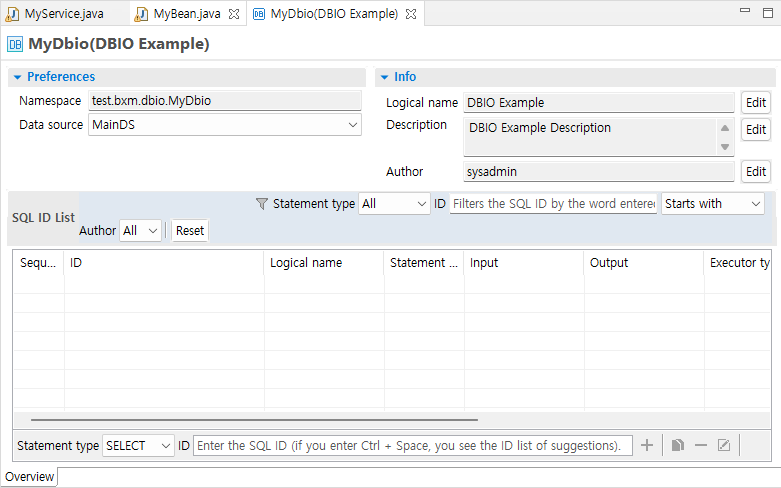

After entering the required information, click the Finish button. The DBIO resource is created and the DBIO editor as shown below opens.
|
For how to use the editor, refer to the DBIO page. |
