BX Framework(BXM) Center-Cut Server Information Registration

Register the server information of BX framework(BXM) Center-Cut using BXM Web Admin.

1. BX Framework(BXM) Center-Cut Server Registration

Register the server information of BX Framework(BXM) Center-Cut.

If "bxm_centercut_dml.sql" was terminated normally in "3.3 BX Framework(BXM) Center-Cut Table Installation", the "Center-Cut Management" menu is added to BXM Web Admin.

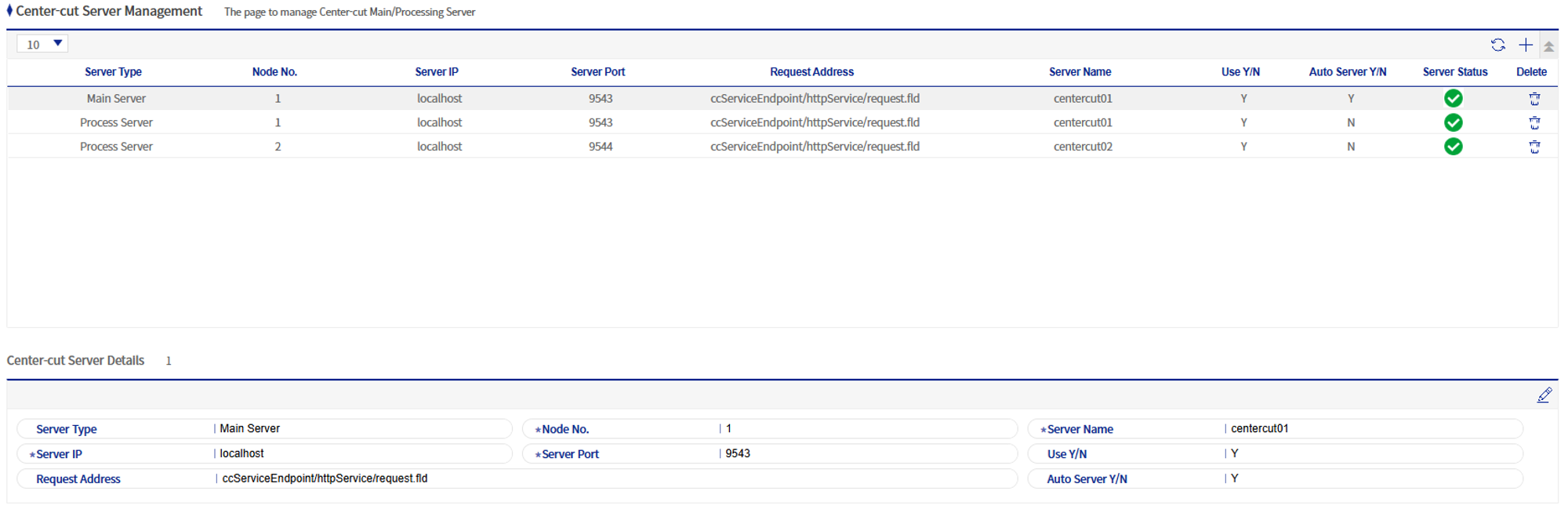

Center-Cut Server Management

Figure 1. Center-Cut Server Management

1.1. Adding a Center-Cut Server

Add the main/processing server of Center-Cut.

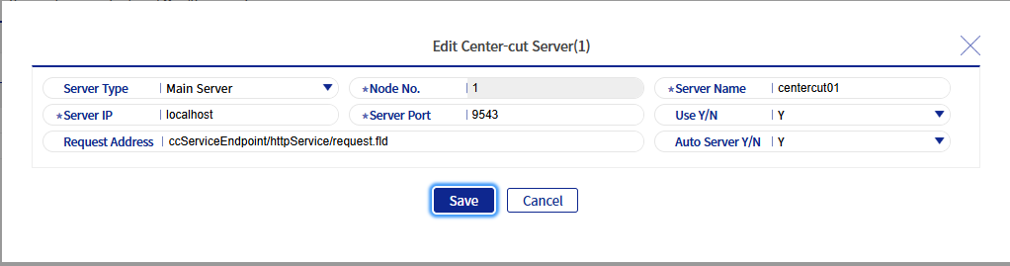

Center-Cut Server Add/Modify Popup

Figure 2. Center-Cut Server Add/Modify Popup

Refer to the following table for descriptions of each field.

Center-Cut Server Add/Modify Popup Field List
Field Name	Description
Server Type	Select the type of server to register. (Main server/Processing server)
Node Number	Register the unique number of each node.
Server Name	This is the instance name of the server. Enter the value of "-Dbxm.instance.name=" in the JVM options.
Server IP	Enter the server call IP.
Server Port	Enter the server call port.
Usage Status	Determine whether the server is used.
Call Address	Enter the server call address.
Automatic Server Status	Register whether this is an automatic server that handles automatic execution/automatic error re-registration. It can be selected only when the server type is a main server.
