Insert

1. Process

When adding an SQL ID, if you use insert* as the prefix, the statement type is automatically changed to insert.

Figure 1. Add insert SQL ID
After clicking the [Basic SQL] button, search for the SMP_EMP_TST table and click the OK button; then the INSERT SQL is generated automatically.

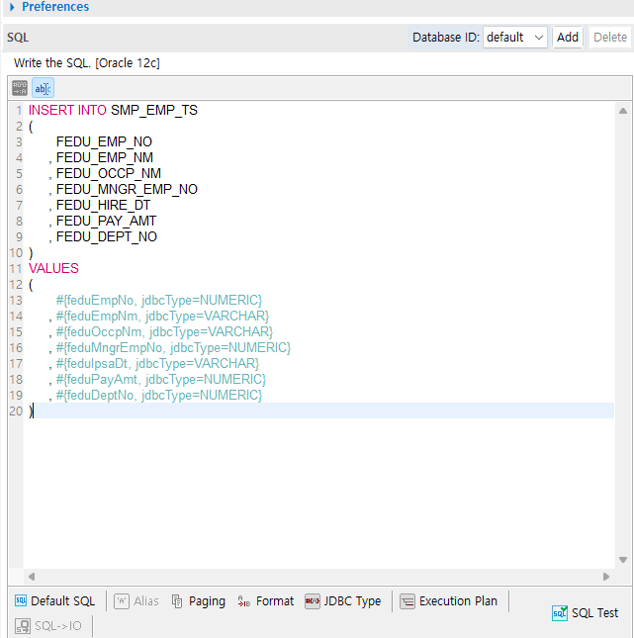

Figure 2. Automatic generation of basic SQL
Add the input type and save it. The DSmpEmpTst000Dto IO created when making the single-search service sample was reused.
The output type is automatically set to int.

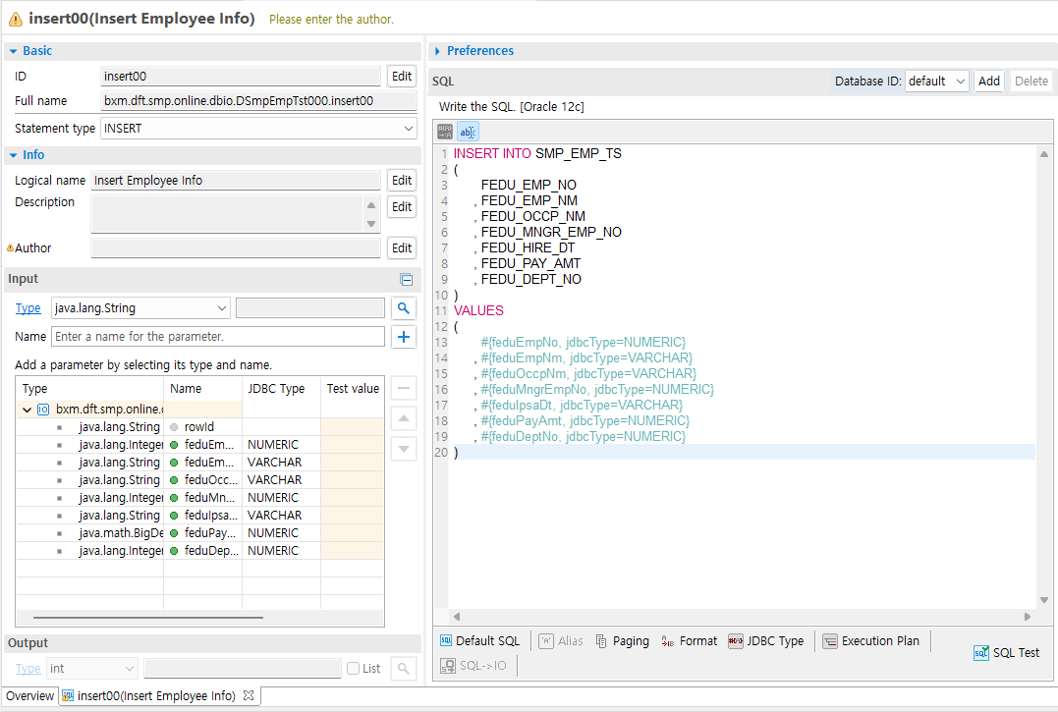

Figure 3. Insert DBIO

2. DBIO Sample

INSERT INTO SMP_EMP_TST /* Sample Employee Information TST */
(
     FEDU_EMP_NO /* FW Sample Employee Number */
    , FEDU_EMP_NM /* FW Sample Employee Name */
    , FEDU_OCCP_NM /* FW Sample Occupation Name */
    , FEDU_MNGR_EMP_NO /* FW Sample Manager Employee Number */
    , FEDU_IPSA_DT /* FW Sample Hire Date */
    , FEDU_PAY_AMT /* FW Sample Pay Amount */
    , FEDU_DEPT_NO /* FW Sample Department Number */
)
VALUES
(
    #{feduEmpNo} /* FW Sample Employee Number */
    , #{feduEmpNm} /* FW Sample Employee Name */
    , #{feduOccpNm} /* FW Sample Occupation Name */
    , #{feduMngrEmpNo} /* FW Sample Manager Employee Number */
    , #{feduIpsaDt} /* FW Sample Hire Date */
    , #{feduPayAmt} /* FW Sample Pay Amount */
    , #{feduDeptNo} /* FW Sample Department Number */
)

3. Bean Sample

@BxmCategory(logicalName = "Single Insert")
public int addEmpInf(DSmpEmpTst000Dto input) throws DefaultApplicationException {

    logger.debug("============== START ==============");
    logger.debug("input = {}", input);

    int addCnt = 0;
    dSmpEmpTst000 = DefaultApplicationContext.getBean(dSmpEmpTst000, DSmpEmpTst000.class);

    /**
     * @BXMType Try
     * @Desc Check duplicate employee id
     */
    try {
        /**
         * @BXMType DbioCall
         * @Desc insert a single employe info
         */
        addCnt = dSmpEmpTst000.insert00(input);

    } catch (DasDuplicateKeyException de) {
        /**
         * @BXMType ApplicationException
         * @Desc throw application exception if employee id is already exists
         */
        throw new DefaultApplicationException("BXME60007", new Object[] { input.getFeduEmpNo() } );
    }

    logger.debug("output = {}", addCnt);
    logger.debug("============== END ==============");

    return addCnt;
}
