Paging Select

This is used in transactions that query a large amount of data from the UI by retrieving only an appropriate number of records at a time. This is to ensure server stability by reducing the processing time and memory usage of online services.

1. Top-N Method

1.1. Format

Input
- Add an input IO. Since paging variables must also be added at this time, you must enter an Alias Name for the input IO when adding it.
- In addition to the input IO, add the paging variables. (They are automatically added when you click the [Paging] button in the DBIO editor.)
- Integer pageNum: Page number to retrieve
- Integer pageCount: Number of records to display per page
Output
- Since paging is also a multiple-record query, check [is Array].
SQL
- Enter SQL and then click the [Paging] button → [Top-N Method] to add the paging query. When using variables of the input IO in SQL, you must use them in the 'AliasName.variableName' format. Refer to #{input.feduEmpNm} in the SQL of the screen below.

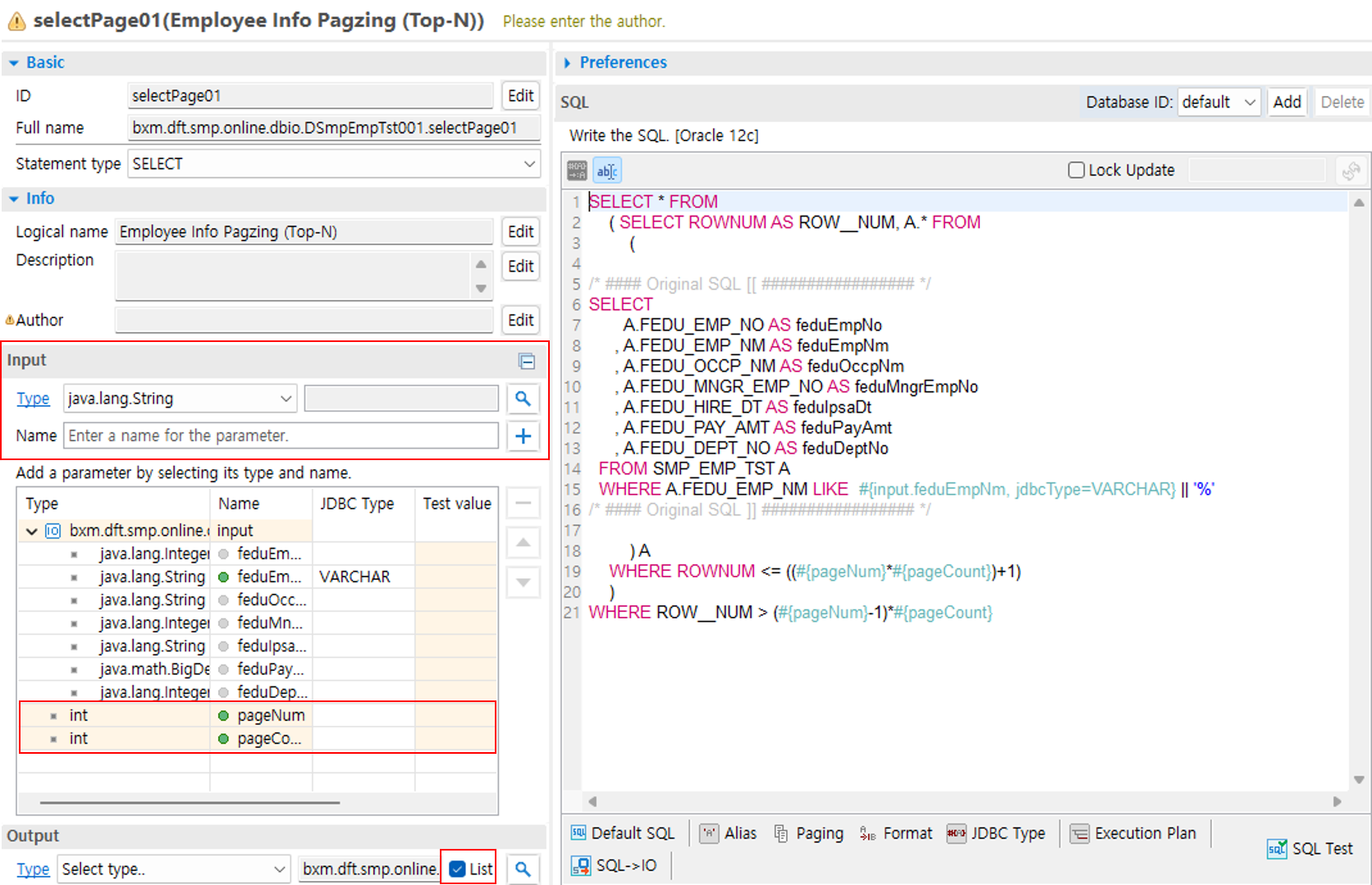

Figure 1. Top-N Format

1.2. Development and Notes

Processing of the query result is the same as for list queries. You can check whether the next page exists using the DasUtils.existNextResult() utility.

List<DSmpEmpTst000Dto> list = dSmpEmpTst001.selectList01(input);

output.setHasNext(DasUtils.existNextResult(list) ? "Y" : "N"); // Whether next data exists

1.3. DBIO Sample

The following is the SQL used in the sample.

SELECT * FROM
    ( SELECT ROWNUM AS ROW__NUM, A.* FROM
        (

/* #### Original SQL [[ ################# */
SELECT
       A.FEDU_EMP_NO AS feduEmpNo
     , A.FEDU_EMP_NM AS feduEmpNm
     , A.FEDU_OCCP_NM AS feduOccpNm
     , A.FEDU_MNGR_EMP_NO AS feduMngrEmpNo
     , A.FEDU_HIRE_DT AS feduHireDt
     , A.FEDU_PAY_AMT AS feduPayAmt
     , A.FEDU_DEPT_NO AS feduDeptNo
  FROM SMP_EMP_TST A
  WHERE A.FEDU_EMP_NM LIKE  #{input.feduEmpNm, jdbcType=VARCHAR} || '%'
  ORDER BY A.FEDU_EMP_NO ASC
/* #### Original SQL ]] ################# */

        ) A
    WHERE ROWNUM <= ((#{pageNum}*#{pageCount})+1)
    )
WHERE ROW__NUM > (#{pageNum}-1)*#{pageCount}

1.4. Bean Sample

@BxmCategory(logicalName = "Select Paging")
public SSMP1003A002OutDto getEmpInfPagzingTopNWithPage(SSMP1003A002InDto input , SSMP1003A002OutDto output) throws DefaultApplicationException {
    logger.debug("============== START ==============");
    logger.debug("input = {}", input);

    dSmpEmpTst001 = DefaultApplicationContext.getBean(dSmpEmpTst001, DSmpEmpTst001.class);

    List<DSmpEmpTst001selectPage01OutDto> dbioOut = null;

    int pageNum   = input.getPageNum();
    int pageCount = input.getPageCount();

    DSmpEmpTst001selectPage01InDto dbioInput = new DSmpEmpTst001selectPage01InDto();

    {
        dbioInput.setFeduEmpNm(input.getFeduEmpNm());
    }

    int totalCount = dSmpEmpTst001.selectCount01(dbioInput).intValue();
    dbioOut = dSmpEmpTst001.selectPage01(dbioInput, pageNum, pageCount);

    SSMP1003A002OutDtoSubGrid01 outDtoSub01 = null;

    for (DSmpEmpTst001selectPage01OutDto fetchDto : dbioOut) {
        outDtoSub01 = new SSMP1003A002OutDtoSubGrid01();
        // Generated by code generator [[
        outDtoSub01.setFeduEmpNo(fetchDto.getFeduEmpNo());
        outDtoSub01.setFeduEmpNm(fetchDto.getFeduEmpNm());
        outDtoSub01.setFeduOccpNm(fetchDto.getFeduOccpNm());
        outDtoSub01.setFeduMngrEmpNo(fetchDto.getFeduMngrEmpNo());
        outDtoSub01.setFeduHireDt(fetchDto.getFeduHireDt());
        outDtoSub01.setFeduPayAmt(fetchDto.getFeduPayAmt());
        outDtoSub01.setFeduDeptNo(fetchDto.getFeduDeptNo());
        // Generated by code generator ]]

        output.getGrid01().add(outDtoSub01);
    }

    {
        output.setPageNum(input.getPageNum());
        output.setPageCount(input.getPageCount());
        output.setTotalCount(totalCount);
    }

    logger.debug("output = {}", output);
    logger.debug("============== END ==============");

    return output;
}

2. Next Key Method

2.1. Format

Input
- Add an input IO. Since paging variables must also be added at this time, you must enter an Alias Name for the input IO when adding it.
- In addition to the input IO, add the paging variables. (They are automatically added when you click the [Page] button in the DBIO editor.)
- Output IO type next: IO that holds the key of the page query
- int pageCount: Number of records to display per page
Output
- Since paging is also a multiple-record query, check [is Array].
SQL
- Enter SQL and then click the [Page] button → [Next Key Method] to add the paging query. When using variables of the input IO in SQL, you must use them in the 'AliasName.variableName' format. Refer to #{input.feduEmpNm} in the SQL of the screen below.
- order key: Key (field) used to sort the list. If there is an ORDER BY clause in the multiple Select SQL, the column is automatically loaded. You can also enter it manually.

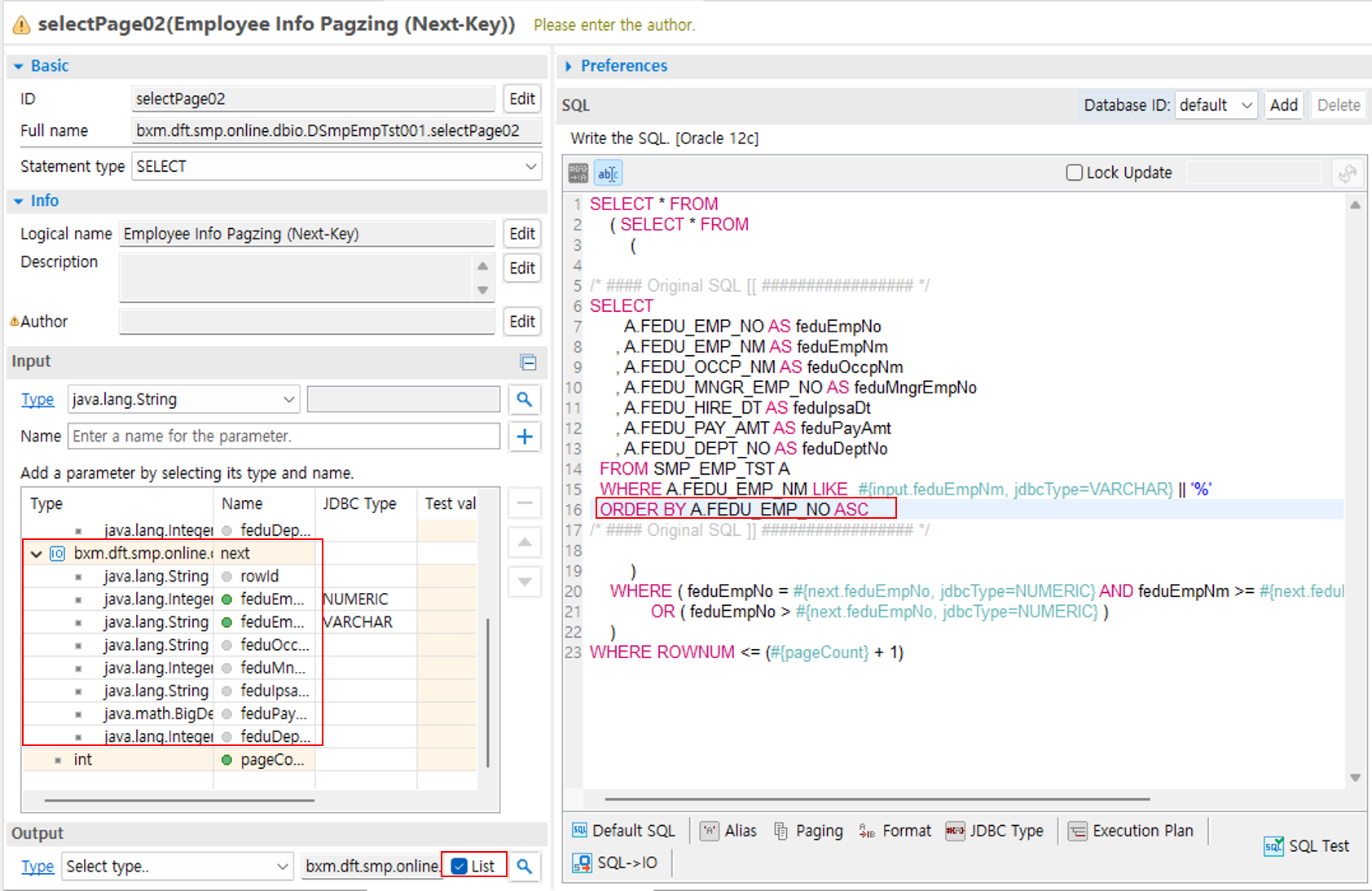

Figure 2. Next Key Format

2.2. Development and Notes

Processing of the query result is the same as for list queries. You can check whether the next page exists using the DasUtils.existNextResult() utility.

List<DSmpEmpTst000Dto> list = dSmpEmpTst001.selectList02(input);

output.setHasNext(DasUtils.existNextResult(list) ? "Y" : "N"); // Whether next data exists

2.3. DBIO Sample

The input/output IO reuses the DSmpEmpTst000Dto IO that was used when creating the single-record query service. The following is the SQL used in the sample.

SELECT * FROM
    ( SELECT * FROM
        (

/* #### Original SQL [[ ################# */
SELECT
       FEDU_EMP_NO AS feduEmpNo
     , FEDU_EMP_NM AS feduEmpNm
     , FEDU_OCCP_NM AS feduOccpNm
     , FEDU_MNGR_EMP_NO AS feduMngrEmpNo
     , FEDU_IPSA_DT AS feduIpsaDt
     , FEDU_PAY_AMT AS feduPayAmt
     , FEDU_DEPT_NO AS feduDeptNo
  FROM SMP_EMP_TST
  WHERE FEDU_EMP_NM LIKE  #{input.feduEmpNm} || '%'
  ORDER BY FEDU_EMP_NO ASC
/* #### Original SQL ]] ################# */

        )
    WHERE ( ( #{next.feduEmpNo} IS NULL OR a.fedu_emp_no > #{next.feduEmpNo} ) )
    )
WHERE ROWNUM <= (#{pageCount} + 1)

2.4. Bean Sample

@BxmCategory(logicalName = "Select Paging")
public SSMP1003A003OutDto getEmpInfPagzingNextKey(SSMP1003A003InDto input , SSMP1003A003OutDto output) throws DefaultApplicationException {

    logger.debug("============== START ==============");
    logger.debug("input = {}", input);

    dSmpEmpTst001 = DefaultApplicationContext.getBean(dSmpEmpTst001, DSmpEmpTst001.class);

    List<DSmpEmpTst000Dto> beanOutput = null;

    DSmpEmpTst000Dto dbioInput = new DSmpEmpTst000Dto();
    DSmpEmpTst000Dto nextInput = new DSmpEmpTst000Dto();

    SSMP1003A003OutDtoSubGrid01 outDtoSub01 = null;

    int pageCount;

    /**
     * @BXMType LogicalArea
     * @Desc DTO mapping
     */
    {
        pageCount = input.getReqCount();
        dbioInput.setFeduEmpNm(input.getFeduEmpNm());
        nextInput.setFeduEmpNo(input.getNextFeduEmpNo());
        nextInput.setFeduEmpNm(input.getNextFeduEmpNm());
    }


    /**
     * @BXMType DbioCall
     * @Desc Select multi employee info on page sql(Next-Key)
     */
    beanOutput = dSmpEmpTst001.selectPage02(dbioInput, nextInput, pageCount);

    /**
     * @BXMType LogicalArea
     * @Desc output data mapping
     */
    {
        output.setReqCount(input.getReqCount());
        output.setGrid01_COUNT(beanOutput.size());
        output.setHasNext(DasUtils.existNextResult(beanOutput) ? "Y" : "N");
    }

    /**
     * @BXMType Loop
     * @Desc output data mapping
     */
    for (DSmpEmpTst000Dto fetchDto : beanOutput) {

        outDtoSub01 = new SSMP1003A003OutDtoSubGrid01();

        // Generated by code generator [[
        outDtoSub01.setFeduEmpNo(fetchDto.getFeduEmpNo());
        outDtoSub01.setFeduEmpNm(fetchDto.getFeduEmpNm());
        outDtoSub01.setFeduOccpNm(fetchDto.getFeduOccpNm());
        outDtoSub01.setFeduMngrEmpNo(fetchDto.getFeduMngrEmpNo());
        outDtoSub01.setFeduHireDt(fetchDto.getFeduHireDt());
        outDtoSub01.setFeduPayAmt(fetchDto.getFeduPayAmt());
        outDtoSub01.setFeduDeptNo(fetchDto.getFeduDeptNo());
        // Generated by code generator ]]
        output.getGrid01().add(outDtoSub01);
    }

    logger.debug("output = {}", output);
    logger.debug("============== END ==============");

    return output;
}
