Overview

This document describes the architecture and processing methods of BXM Center-Cut.

1. BXM Center-Cut Architecture

This section describes the architecture and components of BXM Center-Cut.

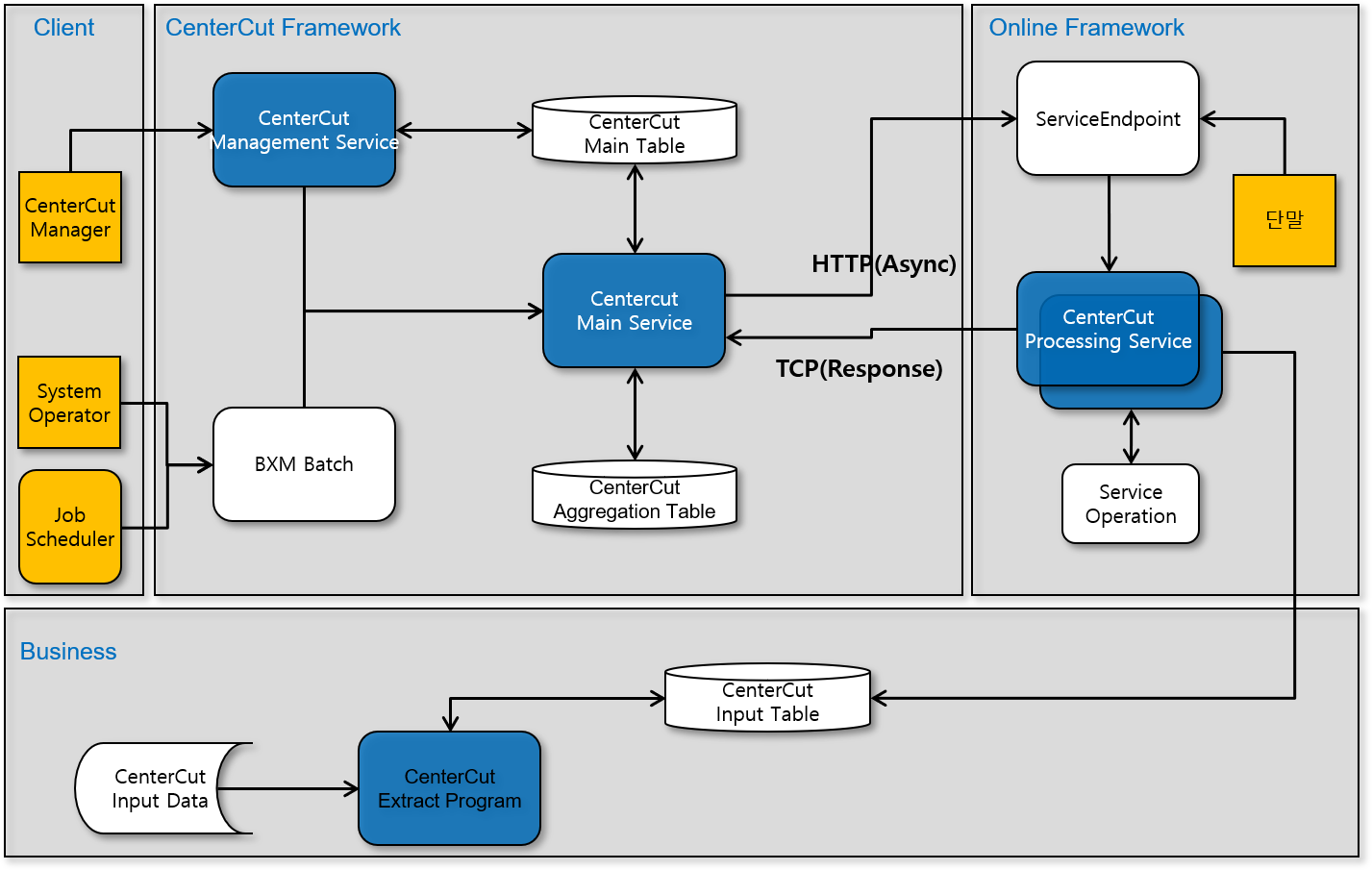

Figure 1. BXM Center-Cut Architecture

Center-cut is a Framework that aims to process large volumes of data in a short time by repeatedly calling online programs for terminal transaction processing to perform batch processing. Because it processes large volumes of data by using existing developed online programs, its processing speed is basically slower than batch. To compensate for this drawback, it is designed to process in parallel, which accordingly requires more resources (such as DB connection).

BXM Center-Cut Components

Element	Description
Job Management	Manages center-cut jobs.
Server Management	Manages center-cut servers.
Batch Registration	Registers input data required for center-cut execution by using batch. An Acceptance Number is generated each time batch is executed.
Main Service	Is called by Job Scheduler or BXM Web Admin and manages processing services. It creates processing services as many as the number of Parallel Processing units.
Processing Service	Is called by the main service and reads data from the input table and calls online services as interlocking transactions. After repeating for the configured number of data items, it terminates.
Aggregation	Aggregates center-cut processing status and processing results.

Element

Description

Job Management

Manages center-cut jobs.

Server Management

Manages center-cut servers.

Batch Registration

Registers input data required for center-cut execution by using batch.
An Acceptance Number is generated each time batch is executed.

Main Service

Is called by Job Scheduler or BXM Web Admin and manages processing
services. It creates processing services as many as the number of Parallel Processing units.

Processing Service

Is called by the main service and reads data from the input table
and calls online services as interlocking transactions. After repeating for the configured number of data items,
it terminates.

Aggregation

Aggregates center-cut processing status and processing results.

2. Center-Cut Processing Patterns

There are the following two BXM Center-Cut processing patterns.

2.1. Batch-Initiated Center-Cut

In a business batch job, center-cut input data is created in bulk as bundles (per Acceptance Number), and another business batch job controls the initiation of center-cut jobs.

2.2. BXM Web Admin-Initiated Center-Cut

In a business batch job, center-cut input data is created in bulk as bundles (per Acceptance Number), and the initiation of center-cut is controlled from the center-cut job status screen in BXM Web Admin.

3. Center-Cut Data Partitioning Methods

There are the following two BXM Center-Cut data partitioning methods.

3.1. General Parallel Batch

A business batch job generates input data, and the order of the input data is not guaranteed.
Center-cut processing services are executed as many as the number of "Parallel Processing units" defined in the center-cut main table, and input data is allocated and processed as many as the "number of data items".

3.2. Sequential Parallel Batch

A business batch job generates input data, and the order of the input data is guaranteed.
The file or table data that is the target data for batch input data must be sorted in the key order that requires order guarantee.
The main service creates groups (execution numbers) as many as the number of "Parallel Processing units" defined in the center-cut basic information. A sequential processing key is assigned to each group, and each execution group calls one processing service and processes sequentially for the "number of data items", thereby guaranteeing priority while performing Parallel Processing.

4. Center-Cut Error Reprocessing

Input data for which an error occurs in the center-cut processing online service is automatically reprocessed according to the items registered in the center-cut basic information.

Jobs can be re-registered as many times as the "total number of execution rounds". In other words, if the "total number of execution rounds" is 3, the main transaction is executed (once), and error reprocessing can be executed 2 more times.
If the "error handling method" is "Do not reprocess errors", the administrator must manually re-register. In this case, for re-registered data, the Round Number is increased by 1 and a new job is registered.
If the "error handling method" is "Automatic re-registration", data for which errors have occurred is automatically re-registered. As above, for re-registered jobs, the Round Number is increased by 1.
